Cartridge Precleaner

Model: C1UD / C1UN

JIMWAY’S PATENTED C1UD PRECLEANER IS A EASY SOLUTION TO PROVIDE MAXIMUM CLEANING POWER VIA A VISUAL INSPECTION FOR THE WORN BLADE AND A BLADE-TO-BELT PRESSURE INSPECTION WINDOW.

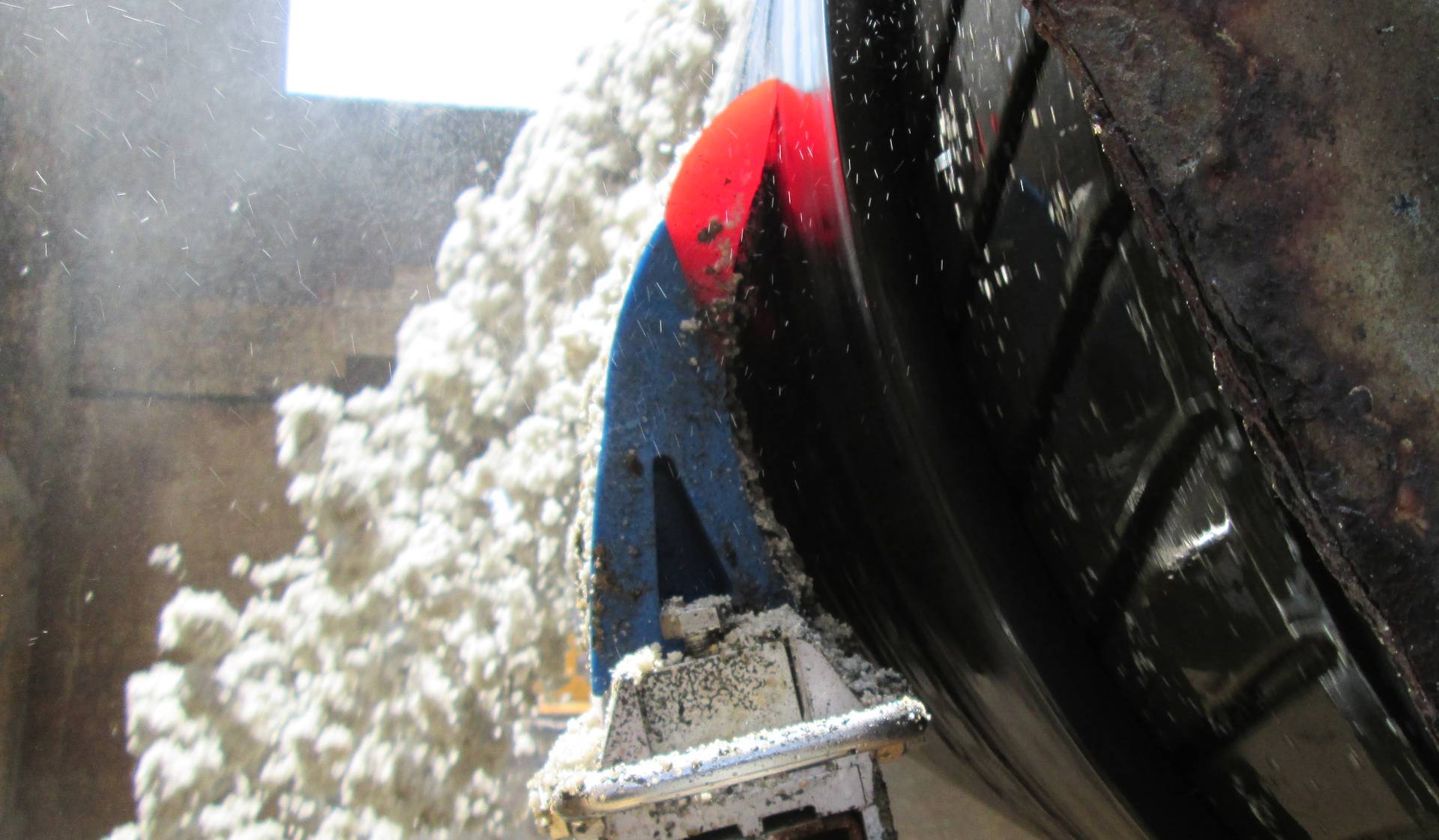

Performing a visual inspection for wear, Jimway’s C1UD belt cleaner blade with bi-color design ensures workers easily to inspect when replace worn blades. The another main feature of this belt cleaner is the tensioner with blade-to-belt pressure inspection window, which makes timely and effective adjustments to increase scraping performance. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime.

Features/Advantages

Quick info

Belt width	600~2000mm [24″~78″]
Belt speed	≤6m/s
Cleaning direction	One direction only

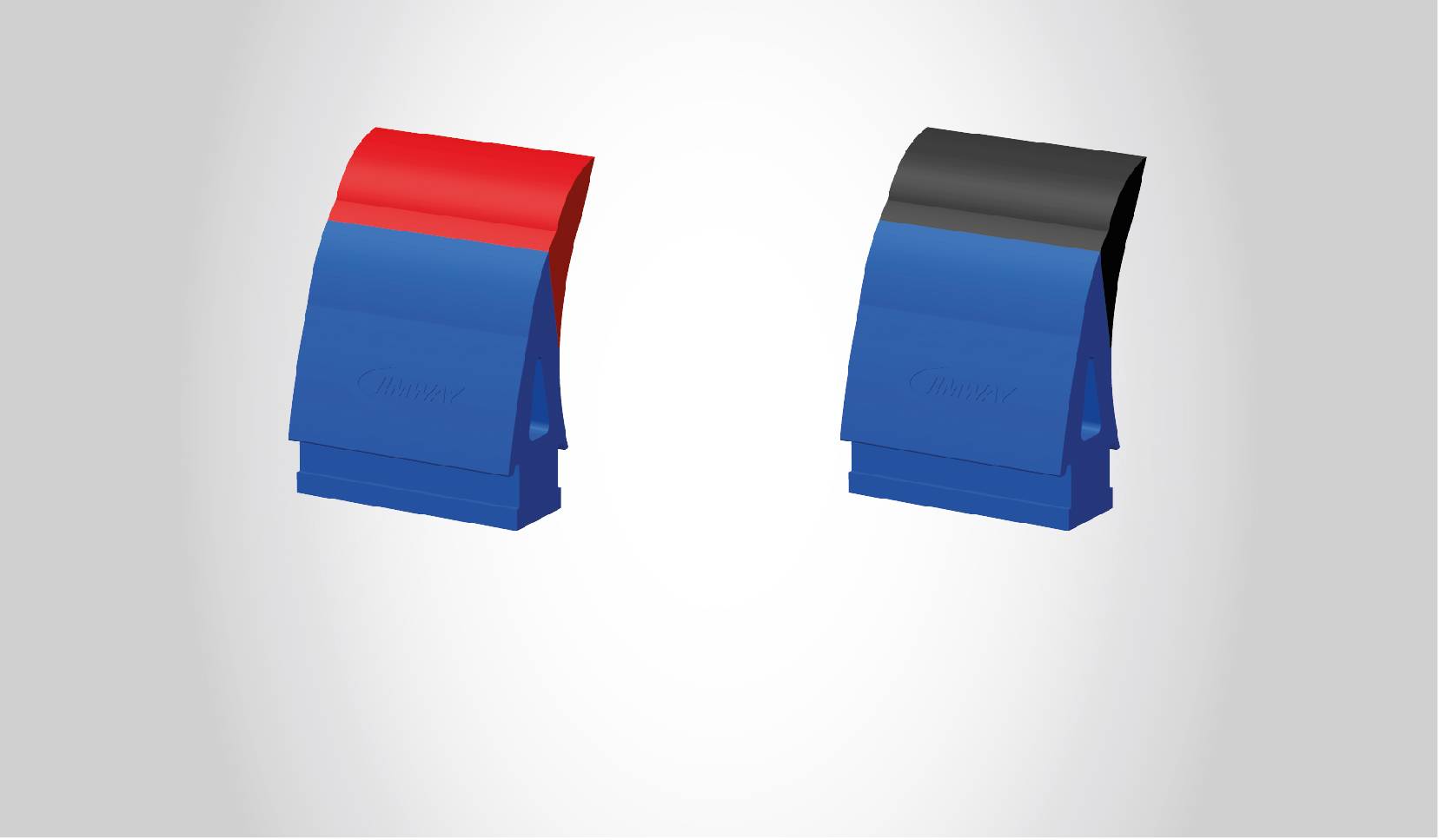

Material selection of blades	PU(C1UD) / nano(C1UN)

Clear wear line

No residue on the curved back blade
Durable PU or nano blade
Low coefficient of friction
Excellent wear resistance

Easy visual inspection

Tensioner with inspection window
Timely correcting blade pressure

Fast and easy installation

Quick-change blades
Belt-friendly

Special blades+tensioner

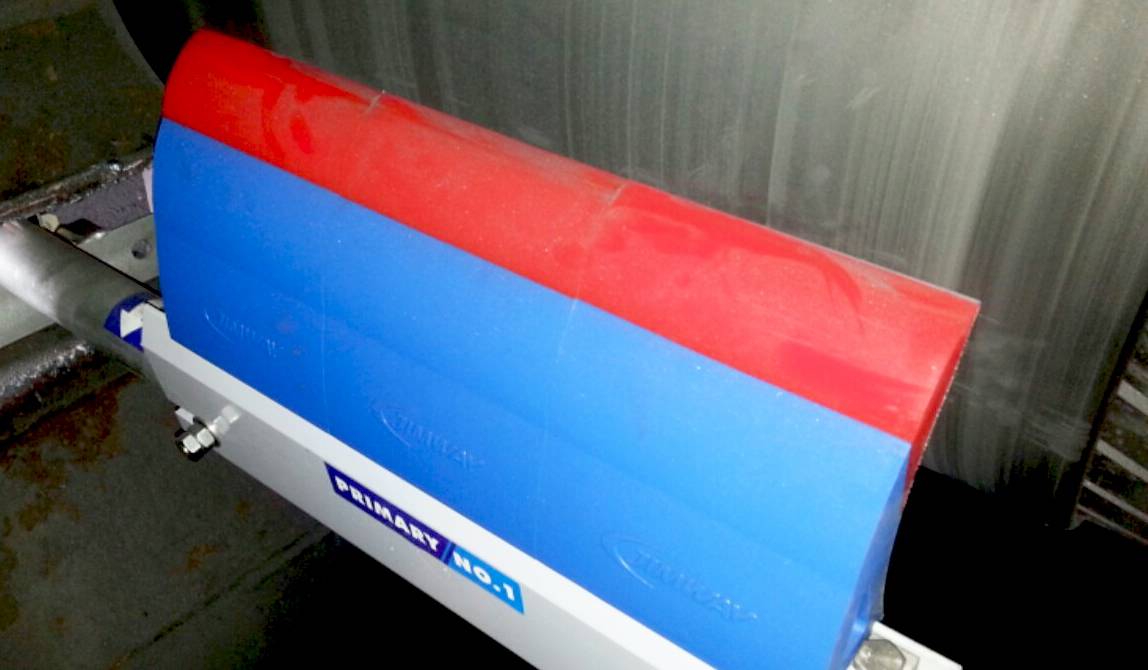

Clear wear line

Replacing the blades when the red part is lost

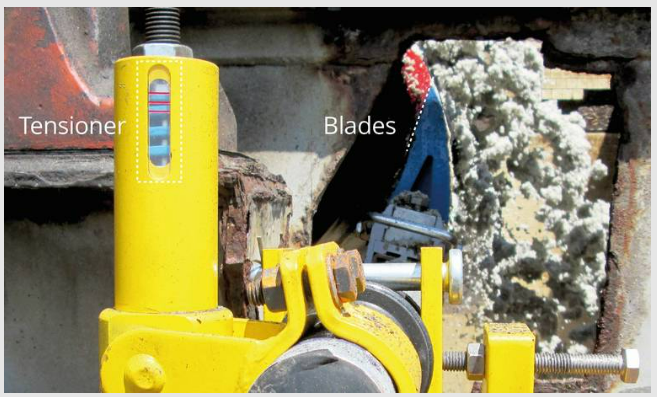

Tensioner with the inspection window

The blade tension will get reduced as blades get worn. Check the tension of the cleaner blades to teh belt and adjust it if necessary for better performance

Specifications

Model	BW	A	B	L	Blades Req.
C1UDS-060	600 [24]	1650	450	530	3
C1UDS-065	650 [26]	1750	450	530	3
C1UDS-075	750 [30]	1800	600	680	4
C1UDS-080	800 [31]	1900	600	680	4
C1UDS-090	900 [36]	1950	750	830	5
C1UDS-100	1000 [40]	2100	900	980	6
C1UDS-105	1050 [42]	2150	900	980	6
C1UDS-120	1200 [48]	2250	1050	1130	7
C1UDS-140	1400 [54]	2450	1200	1280	8
C1UDB-160	1600 [63]	2750	1350	1430	9
C1UDB-180	1800 [72]	2950	1500	1580	10
C1UDB-200	2000 [78]	3150	1650	1730	11
