Features/Advantages
Quick info
| Position | The carrying side |
| Trough angles | 0°~45° |
| Belt width | 400~2000mm [16″~78″] |
Supporting the belt

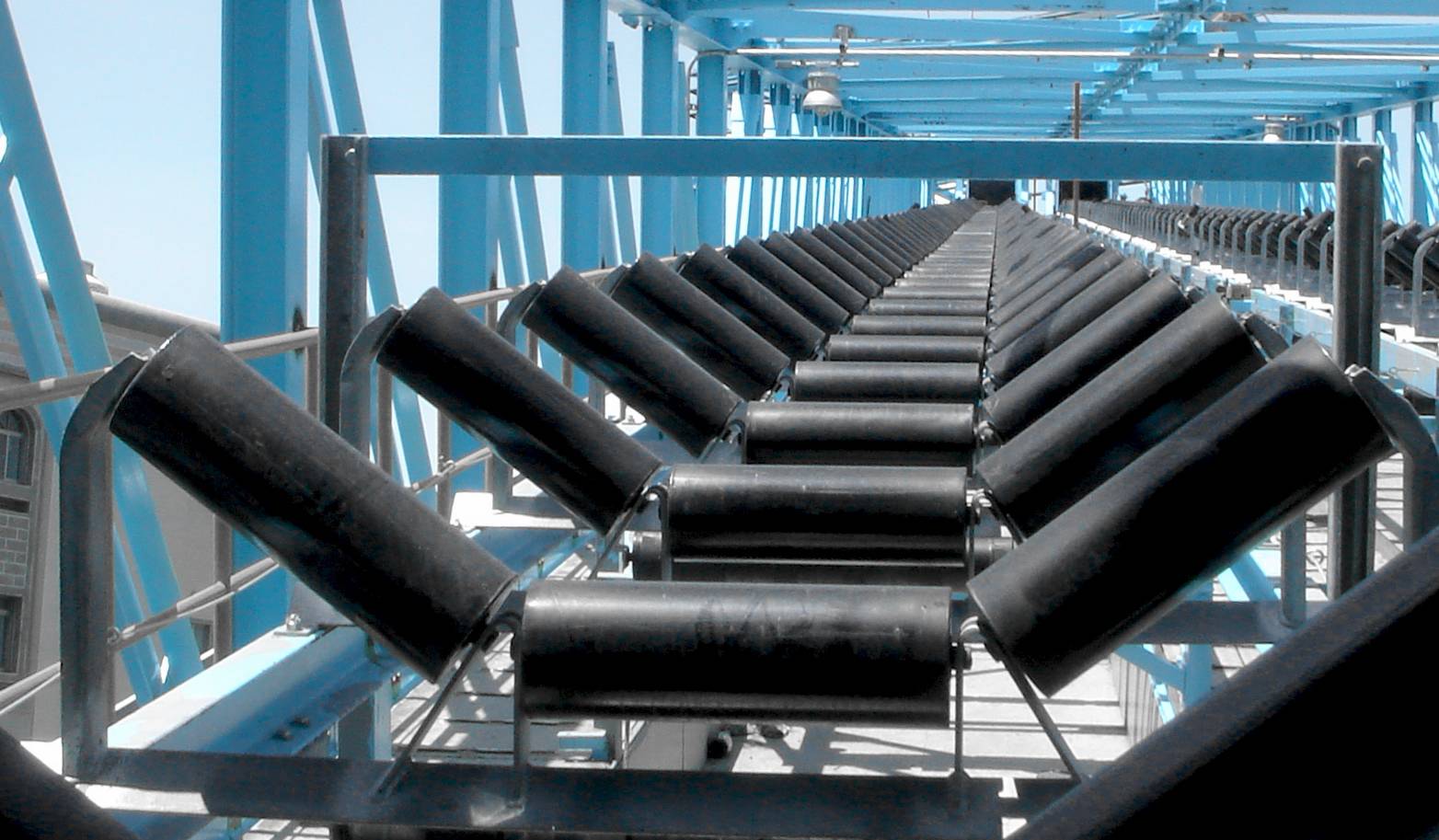

Troughing/Carry Idler
Model: JCR
JIMWAY focuses on conveyor rollers,which has excellent dynamic balance and abrasion resistant properties to extend life,reduce mainteance and power consumption.We have a huge range of conveyor rollers available in JIS,CEMA (C,D,E,F),DIN and custom-designed for your conveyor line
HDPE/Steel Pipes
Characteristics of HDPE pipes
- The in-house HDPE pipe extruder
- 50% lighter than steel pipes
- Cheaper transportation and safe handle
- Low noise emission
- Corrosion resistance
- Excellent chemical resistance
- No belt damages
- Suitable for humid and wet conditions
- Non-toxic HDPE pipe
Characteristics of Steel pipes
- Designed for Heavy-duty usage
- Powder coating steel pipe
- Rust and corrosion prevention

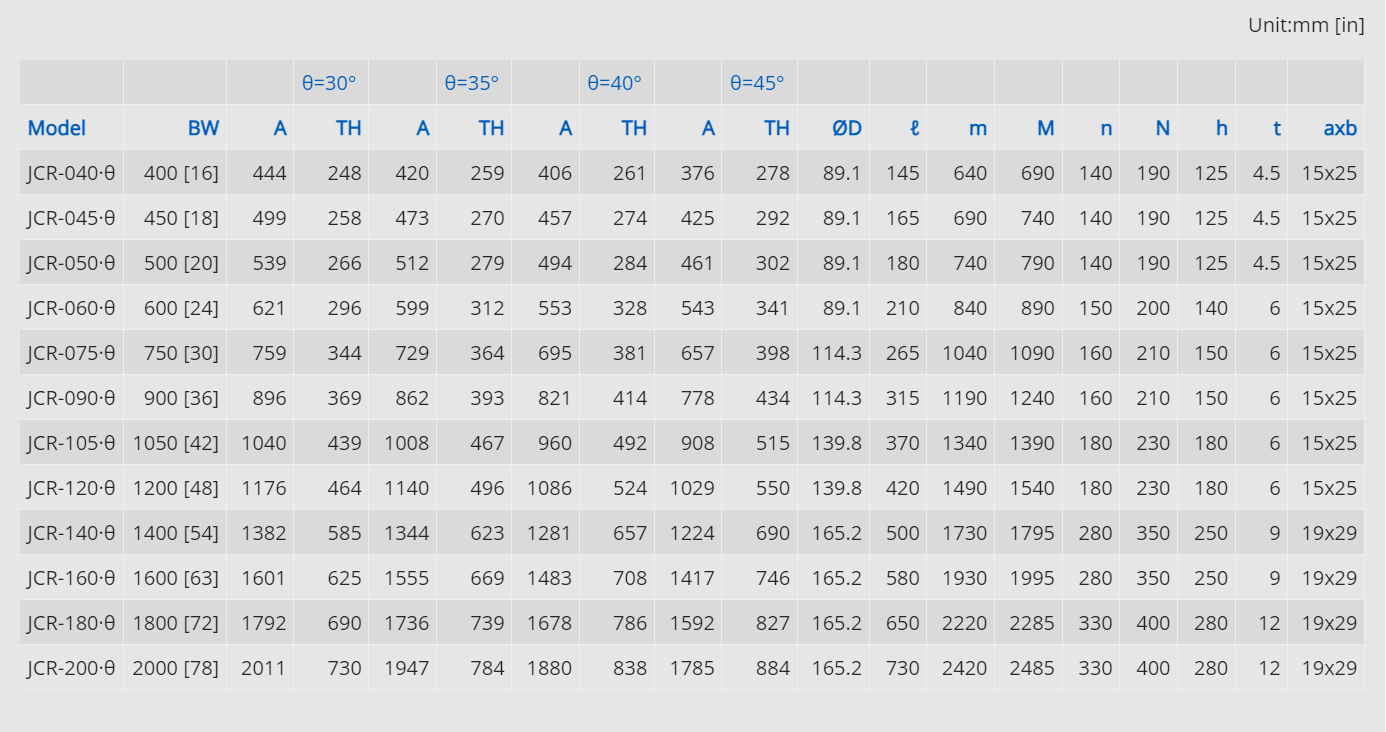

Specifications
